There’s some-fin special about this one, and it's not just the daft name or the Bite Radius knob.

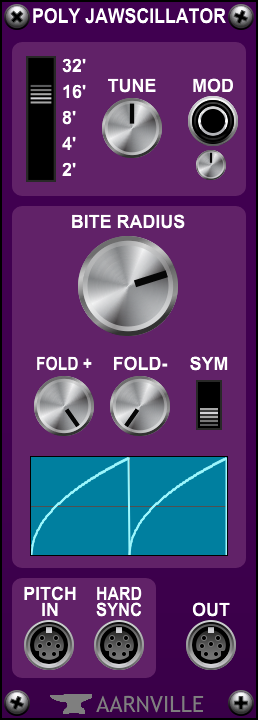

Poly JAWScillator is a poly sharktooth oscillator. In its basic form it adds a concave or convex curve to the rising part of a ramp waveform. But that's not enough to make it interesting so this module also includes an asymmetric wave folder for some fin-tastic waveforms to give your sounds a bit of bite.

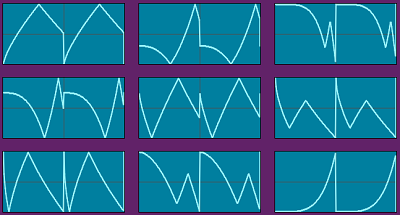

The Bite Radius and Fold knobs combine to define the final waveform and two cycles of that waveform are shown on the mini-display.
A mono version is also available: JAWScillator
You're gonna need a bigger DAW.
A standard poly input. This is typically the input note(s).
A standard CV input. This modulates the tuning knob.
A standard poly trigger input. Each time a positive-going signal crosses zero the waveform is reset to the start of the cycle.
The output waveform, normalised to +/- 5V.
Adjusts the pitch by +/-7 semitones.
This sets the base range for the oscillator.
This sets the shape of the rising edge of the waveform.
These two knobs give you independent control of folding the top and the bottom of the waveform. The resulting waveform is normalised back to +/- 5V to keep the output level consistent. Fold- is disabled when the symmetry switch is activated.
This forces the wave folder to be symmetrical. The Fold- knob is disabled and the Fold+ knob folds both top and bottom of the waveform.
Download the presets used in the video
